Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board

Shopping for premade pompano rigs or rooster rigs kinda sucks, they will get pricy fast when there are toothy critters round and sometimes are available a line weight you don’t need. I’ll present you easy methods to simply make a dropper loop (pompano) rig board that you should have you tying up constant professional-grade pompano rigs and rooster rigs very quickly. Very first thing we have to do is head to the ironmongery shop and seize a couple of issues to construct the board.

Fishing Do-It-Your self Venture (DIY) Protection on AllOutdoor

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board
1×6 Fir Board for the bottom of the Rig Board

The very first thing we’d like is at the very least a 36-inch size of a 1×6 board. I discovered this 1×6 fir board within the Residence Depot reject pile, so I paid solely $6 for a 12-foot-long board. You don’t have to get a board this lengthy, however I used to be making a number of of those boards to present to buddies.

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board
3/8 Picket Dowels

Subsequent factor you’ll need is a 3/8 in wood dowel, attempt to discover the smoothest one potential. That approach, you don’t must prep as a lot later.

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board
7/8 in 1-1/4 in Cup Hooks

The very last thing you’ll need to purchase is a few 7/8 in 1-1/4 in Cup Hooks, you’ll need 3 hooks per rig board. So, in case you are making multiple rig board, bear in mind that these are available packs of 4 or 50.

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board

I do wish to say, issues you’ll need, however I didn’t purchase them as a result of I already had them was an electrical drill and bits, a noticed to chop the board down, and wooden glue. For those who don’t have these already, you’ll need to get them while you’re grabbing different provides. But in addition, in case you are doing DIY tasks, you need to have already got these instruments.

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board

Now, step one of constructing your rig board is to chop a 36-inch piece of board. For those who additionally purchased a reject bin piece of lumber, now you need to give it sanding to clean out the floor and clear it up. You need a clean floor with no splinters or sharp edges to snag your fingers or line when you’re making your rigs later.



Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board

Upon getting the baseboard sanded and clean, it’s time to drill the holes in your cup hooks. You wish to drill three holes on the midline of the board. One at 2 inches, one at 11 inches, and one at 27 inches. I used a 1/16 in drill bit, and solely drilled down 1 / 4 inch, utilizing tape on the bit.

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board

Subsequent, it was time to drill within the peg holes, utilizing a 3/8 in drill bit; you might want to drill 4 holes. 2 on the underside fringe of the board fringe of the board 1/2 inch up from the sting at 16 in and 22 in. 1 on the highest fringe of the board a 1/2 in from the sting at 19 in. And the ultimate gap is on the midline of the board at 33 inches. Clean out any wooden tearout which may have occurred whereas drilling, after which its time to maneuver on to reducing the pegs.

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board

Take your wood dowel and lower 4 items of 4-inch lengths. Upon getting all of them lower up, I like to recommend taking some sandpaper and sanding down the corners and smoothing the floor out. You’re going to be operating your line over these dowels, so a smoother floor is healthier.

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board

When you prep all of the wood dowels, it’s time to set up all of the items. Take some wooden glue and put a little bit of it on one finish of every dowel piece. Then place every dowel into every gap. In the event that they’re a little bit of a comfortable match, simply faucet them into place with a hammer. Then take your cup hooks, and screw them into place. You need the 2 hooks at 11 and 27 inches to be going through the identical route, whereas the final cup hook faces out of the board. You don’t want to attach these hooks in place. Let the rig board sit for at the very least half-hour to let the glue set and dry.

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board

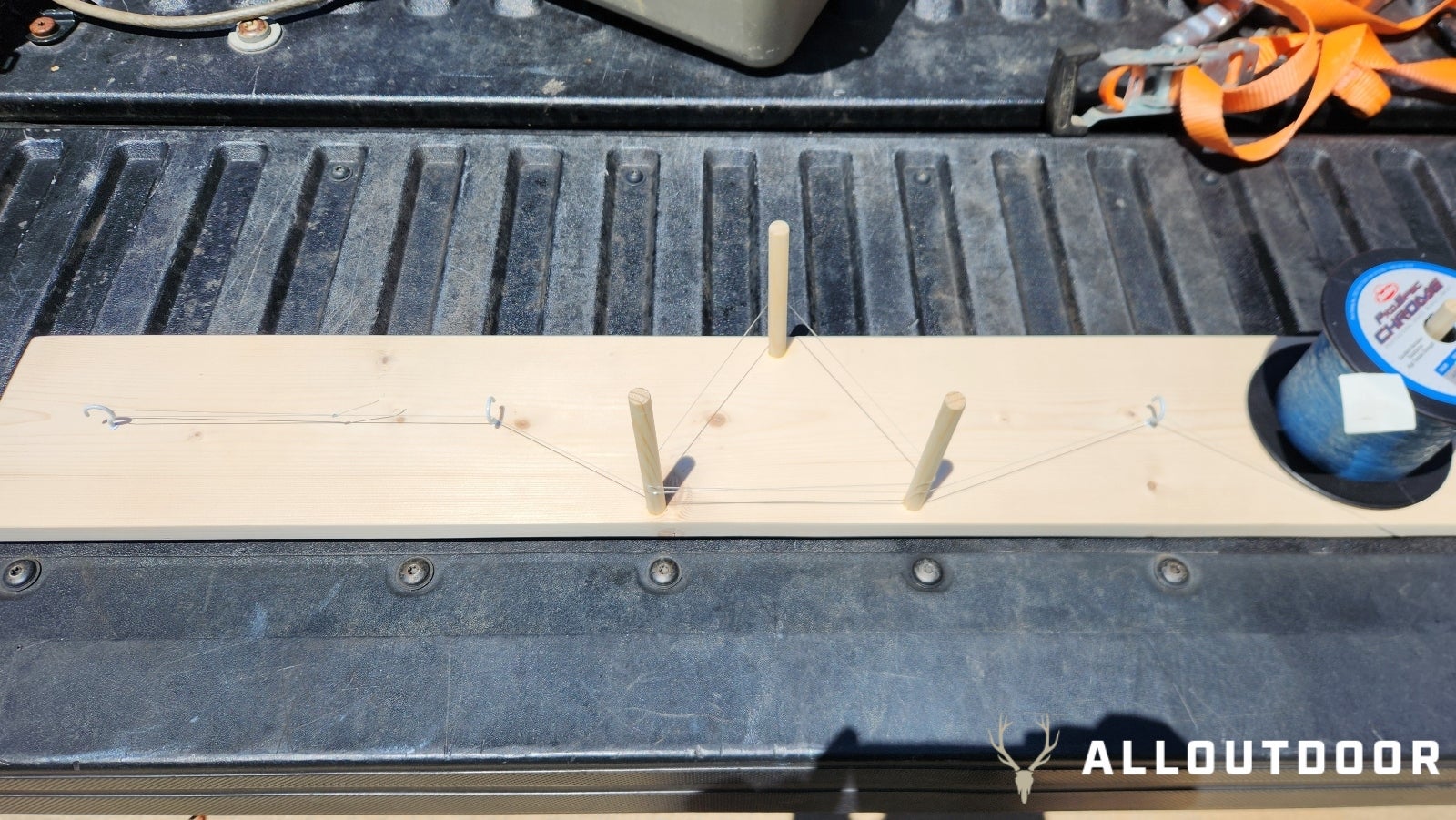

With every thing in place, you now have a accomplished dropper loop (pompano) rig board that could be very simple to make use of and provides you with tremendous constant rigs every time. If you wish to use it for pompano rigs, I say stick with 15-20lb monofilament or fluorocarbon line. If you wish to use it for this summer time’s snapper season, I like to recommend anyplace from 40 to 60lb monofilament or fluorocarbon line, relying on which species of snapper you might be focusing on. For beeliners and different smaller snapper species, a 40lb chief can be a more sensible choice, whereas for pink snapper, the 60lb chief materials can be what you need.

Do-It-Yourself Project (DIY) – Dropper Loop (Pompano) Rig Board
Making Snapper Hen Rigs utilizing 60lb Pink Ande

Avatar Author ID 322 - 940935004

Author for AllOutdoor.com and OutdoorHub.com Lifelong angler that may fish for something that swim, firearms fanatic, and hunter. Instagram – mrfish49
