Hornady’s OAL gauge is a great tool for figuring out most general size in your handloaded ammunition. It makes use of a modified case (that you may purchase) that’s drilled and tapped to string onto the tip of the gauge. This piece of brass doesn’t have the neck rigidity to carry a bullet securely, so when put in on the gauge you may drop a bullet into the neck, push this modified cartridge into the chamber, then slide the plunger ahead till the bullet comes into contact with the rifling within the throat. After locking down the plunger, take away all the pieces, drop the bullet again into the case, and you’ve got a strong measurement for the cartridge’s general size at which the lands are contacted.

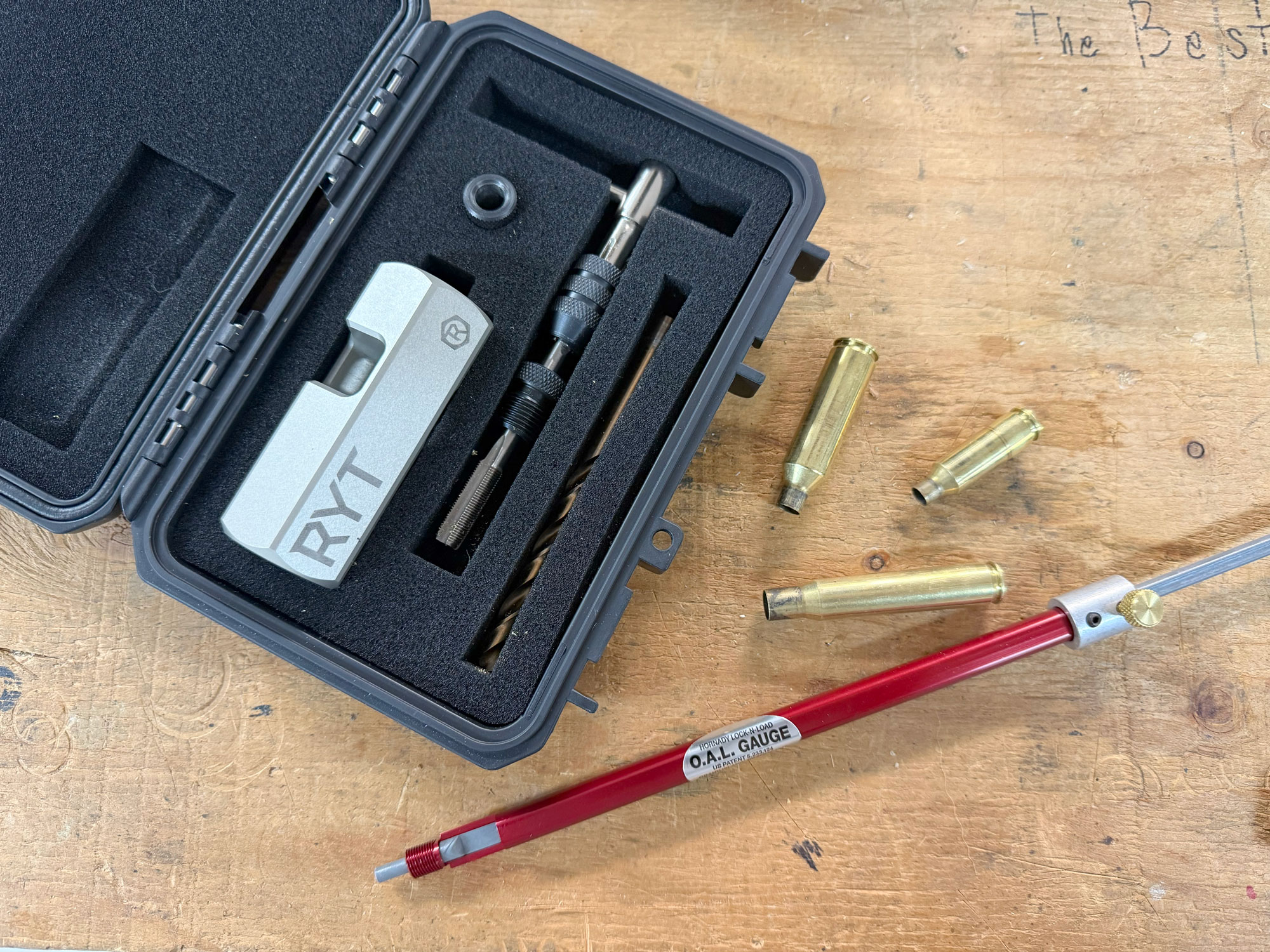

One criticism of this method is that you need to purchase or order the modified instances — which is even much less handy for wildcatters. However this new kit from RYT Gear offers you all the pieces it’s essential make your individual modified instances utilizing your individual fired brass. I’ve been utilizing this for cartridges like 22 ARC, 25 PRC, .30/06, and .300 PRC.

Steps for Making Your Personal Modified Circumstances:

1. Decap fired case
2. Take away de-capping rod and/or neck mandrel rod from sizing die
3. Insert fired case into sizing die till it sticks
4. Thread jig physique over sizing die with case into it till hand tight
5. Set up drill bit information to jig physique
6. Drill out primer pocket
7. Thread tapping information into jig physique
8. Faucet
9. Take away sizing die and case from meeting
10. Use reloading press to drag case from sizing die if sticky

That is one other nice piece of reloading tools, just like the caught case remover, that will not see each day use, however while you want it, you’ll by no means remorse having it.
